| Diameter of Fiber Cable:: | Max. 20mm | Dimension: | 440*205*115mm |
|---|---|---|---|
| Type: | Horizontal Type | Protection Class: | IP65 |
| Cable Port:: | 4 Ports | Max qty of splice tray: | 96 core |
| Application: | FTTH | Material: | PC |
| 강조하다: | 96 core Fiber Optical Splice Closure,PLC Type Fiber Optical Splice Closure,Horizontal PLC Splice Closure |
||

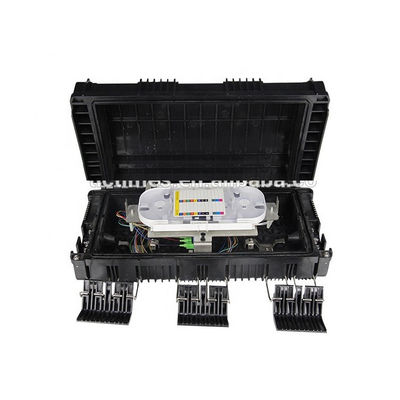

Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 coreFiber Optical Splice Closure With Splitter In-line Enclosure
1. Application:
This installation specification apply to GJS-H004 PLC type fiber optic closure,which explain how to install in the right way.GJS-H004 can be used in aerial-mounting,which provide straight and divergent, spectroscopic and related joint protection for all kinds of fiber cable type. IP65. 4 inlet ports, 18 FTTH cable outlet port.
2. Product Structure:

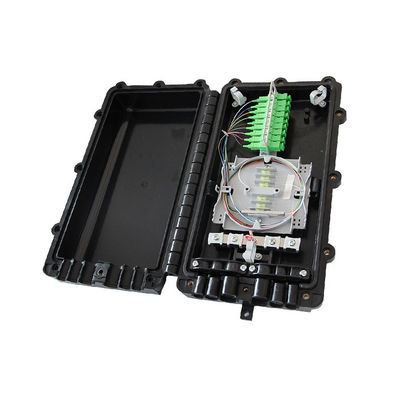

The product is mainly composed of a closure cover, a closure body, support parts (including adapter holder), splice tray, cable fixing unit and closure fixed part. The closure body is a tool free open type structure, which is sealed by a silicon rubber sealing material
2.1: Dimension(L×W×H): 440×205×115mm;
2.2: Gross Weight:3.2KGs
2.3: Numbers of cable Ports: 4 ports
2.4: Maximum cable diameter:18mm
2.5: Maximum FTTH Ports:18 Ports
2.6: Optical branching ratio:1:2 1:4 1:8 1:16
2.7: Operating temperature:-40℃~+60℃

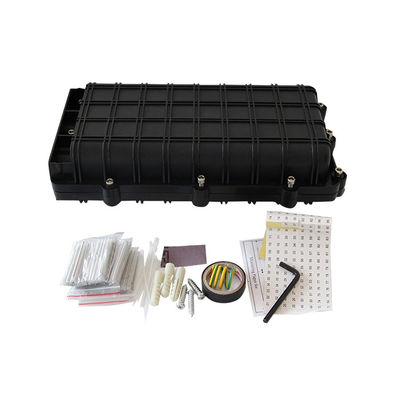

3. Main accessories and tools:
1. Sealing tape (for winding optical cable)
2. Silicone rubber cable seal
3. Silicone rubber covered cable seal
4. Silicone rubber sealing strip
5. Optical cable and reinforced core fixing piece
6. Hose clamps
7. Stainless steel hook
8. Heat shrinkable tube
9. nylon cable tie
10. Digital paper
11. Electrical tape
12. Sand Paper
4. Our advantage:
1. Competitive price
2. Fast delivery
3. Free sample provided
4. Long time warranty
5. Reliable quality, OEM service available
6. Professional product and technical support
7. Prompt answer for any question or inquiry
4. Preparation and installation of optical cable:
