| Model Number: | CY-QSFP-4SFP-A1M | Data transfer rate: | 40Gbps |
|---|---|---|---|
| Cable Length: | 1/3/5m or customized | Product Name: | 40G QSFP to 4 SFP+ AOC |
| Wavelength: | 850nm | Application: | Data Center |
| 강조하다: | SFP+ Active Optical Cable,40G AOC Active Optical Cable,40G QSFP to 4 SFP+ AOC |
||

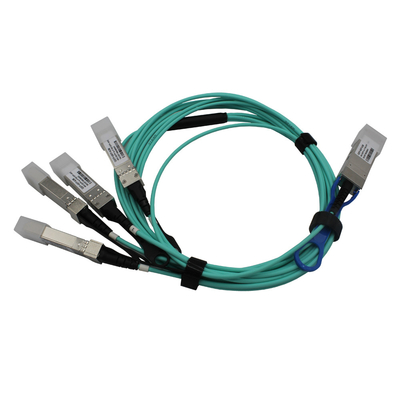

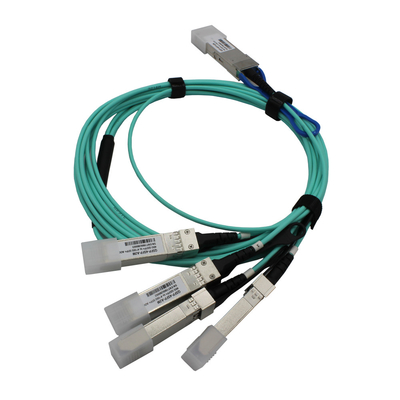

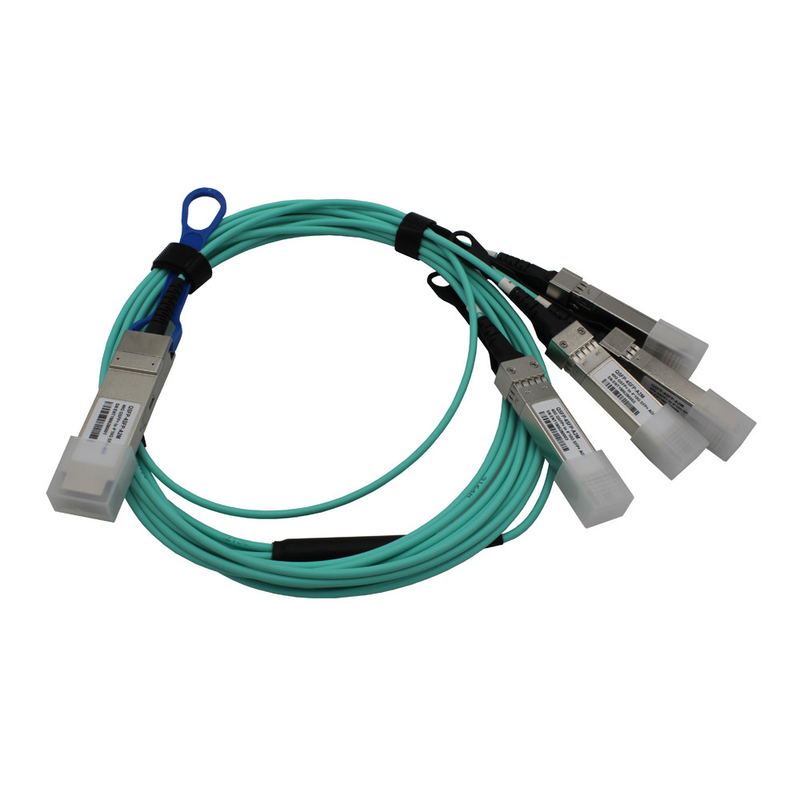

Data Center 40G QSFP to 4 SFP+ AOC Active Optical Cable
AOC 1M 40G to 4*10G cable QSFP+ Active Optical Cable Compatible with HP/TP-Link/Juniper
| QSFP+ to 4*SFP+ module |
| QSFP+ Maximum Aggregate Data Rate 40Gbps |
| 4*SFP+ Maximum Aggregate Data Rate 4*10Gbps |
| QDR,DDR,SDR(Infiniband) |
| Bi-directional pararell link |
| 10Gb/s per lane,X4 channels |
| Up to 100m |
| Low profile connectors |
| Low power consumption |
| Bundle multi-mode fiber array |
| 850nm VCSEL four array |
| PIN diode four array |
| Hot-Pluggable |
| I2C management interface |
| From 0 to 70 degree case temperature |
| 3.3V power supply voltage |
| Electrical 38-pin connector |
| Low-latency and high-speed interconnections for high performance computing(HPC) |
| 40G Ethernet SR4 |
| Other high-throughput data transmission network |
| Storage area Network(SAN |
