| Product name: | 19 Inch ODF 144 Core Fiber Optic Termination Box | ports: | 72 |
|---|---|---|---|
| 인증: | ISO9001 | Application: | FTTX Network |
| Material: | Cold-rolled Sheet | Color: | Black |
| 강조하다: | 19 Inch Optical Odf,72 Port Optical Odf,0.9mm Optical Odf |
||
0.9mm 144 Core 72 Port Patch Panel 19 Inch Optical Odf

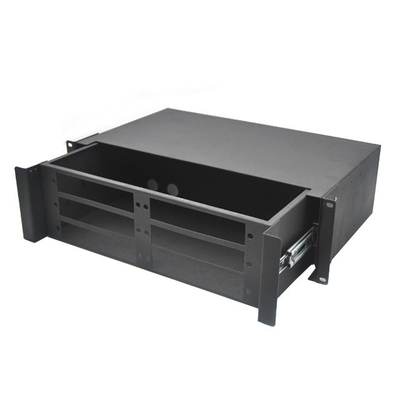

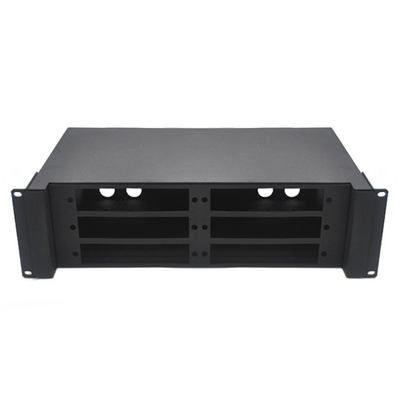

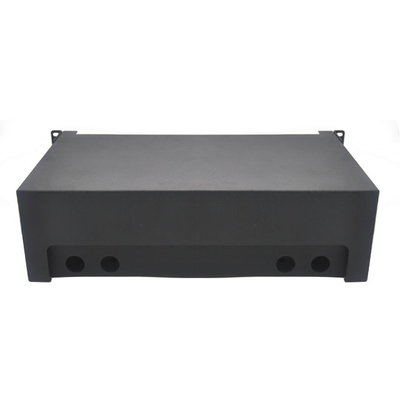

19 Inch ODF 144 Core Fiber Optic Termination Box 72 Port Patch Panel
General Description
The Fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements. The JK0601 we provide is a kind of high quality, micro sized fiber optical termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment. The box can only be installed in the indoor rack mount chassis.
Main Features
1. Low excess loss & High performance

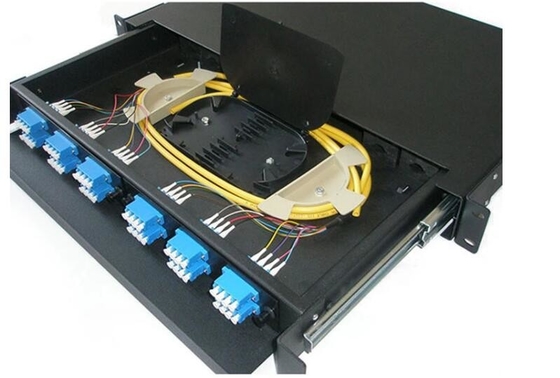

2. Retractable splicing tray
3. Convenience and ease of handling
4. Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
5. With splice trays in the box and integrate heat sealing and wiring into one.
6. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
7. It's suitable for ribbon or non-ribbon optical fiber cable.
8. Every tray can be clamped with 12FC/SC/ST adaptors.
Application:
fiber splicing
Optical connector assembly
arrangement of the optical path
The storage of the extra fiber
Protection of optical fibre cables
Specifcation
| Product | FTTH 19'' Rack Mount 96 Core Outdoor Fiber Optic Termination Box |
| Type | rack mount/drawer type/rotate type |
| Port | 8/12/24/48/72/96/144 ports |
| Adapter faceplate | SC/ST/FC/LC/E2000 |
| Color | light gray |
| Pigtail | SC LC FC ST 0.9mm or breakout pigtail |
| Work Temperature | -10-+60°C |
| Atmospheric Pressure | 70KPa~106KPa |
| Storage Temperature | - 25-+85°C |
| Relative Humidity | ≤ 85%(+30°C) |
