| Model:: | wall mount odf | Application:: | FTTX, FTTH odf |
|---|---|---|---|
| Dimension:: | 1U,2U,3U,4U | Supply adaptors: | SC/LC/ST/FC |
| color:: | white , black ,grey | Capacity of Cores: | 72 96 144 cores |
| 강조하다: | Outdoor ODF Optical Distribution Frame,144 port Outdoor ODF,FTTX Optical Distribution Frame |
||

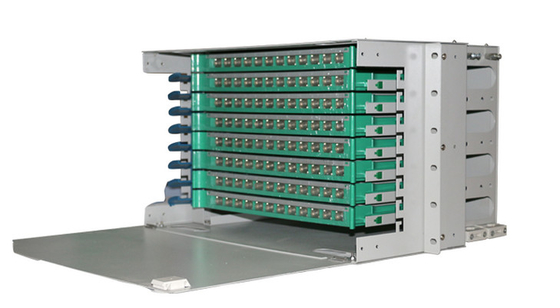

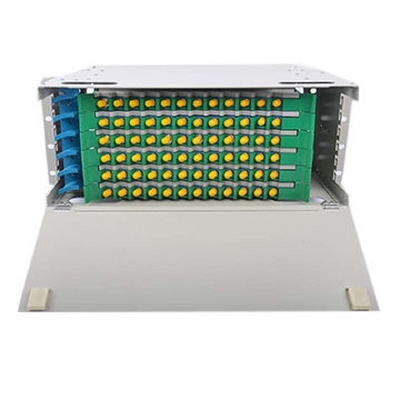

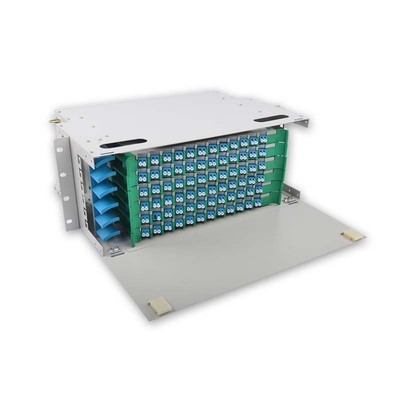

FTTX 144 Port Outdoor ODF Optical Distribution Frame
Large capacity 72 96 144 port Outdoor Fiber Optic ODF/main Distribution Frame Patch Panel
Introduction
The optical fiber terminal box can be applied in the branch connection of fiber termination,working as distribution box,19’’standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.
Structural features
l All property indexes are in accordance with National YD/T925—1997 Standard.
l The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable.
l Distinctive design of 1-2 cable entrance and fiber exit of 1-24 cores assures flexibility.
l Cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
l Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
Technical specifications
External Size: (length×width×height) 430x300x1U/2U
Optical fiber winding radius: ≥40mm
Extra loss of fiber tray:none
Fiber length left in tray:≥1.6m
Fiber capacity: 48 cores
Working temperature: - 400C ~ + 600C
Lateral pressure-resistance: 500N
Shock-resistance:750N
Rack-mount Fiber Optic Distribution Frame
| Model | Core Count | Height | Dimension(cm) | Weight(kg) |
| ODF-R144 | 144 | 7U | 49x30.5x31.15 | 17.1 |
| ODF-R96 | 96 | 5U | 49x30.5x22.25 | 11 |
| ODF-R72 | 72 | 4U | 49x30.5x17.8 | 9 |
| ODF-R48 | 48 | 3U | 49x30.5x13.35 | 7 |
| ODF-R36 | 36 | 2U | 49x30.5x8.9 | 5.7 |
| ODF-R24 | 24 | 2U | 49x30.5x8.9 | 4.6 |
