| Size: | 140*105*28mm | Material: | Steel |
|---|---|---|---|
| Applied adaptor: | SC ST FC LC | Port: | 4 / 8 / 16 |
| Weight: | 0.4kg/0.7kg/1.3kg | Color: | White |
| Packing: | 50/40/20pcs/carton | Application: | FTTH ,Wall mounted |
| 강조하다: | 16 Port ODF Patch Panels,16 Port FC LC Wall Mount Patch Panels,16 Port FTTH ODF Patch Panels |
||
Indoor Wall Mounted 86 Type Mini 2 Core FTTH Fiber Optic Patch Panel Terminal Box
Description
FTTH terminal box are used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall. May adapt variety of optical connection styles. Optical fiber can be managed effectively. Fixed and splied with pigtails.It can be istalled on the wall.Can adapt variety of optical connection syles.
Features
1- Steel material used ensures the body strong and light
2- Easy installations: Indoor wall mounted.
3- Fiber cable inlets from every direction, supporting the cable inlets for different scenarios.
4- Adoptable adapter: Simplex FC, SC, ST or duplex LC.
Application:
FTTH
Optical communication system
Specification:
| Product name | Fiber Terminal Box | Fiber Terminal Box | Fiber Terminal Box |

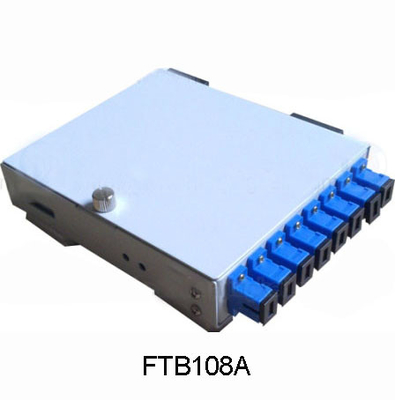

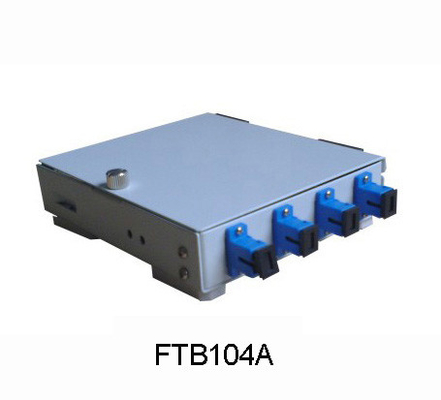

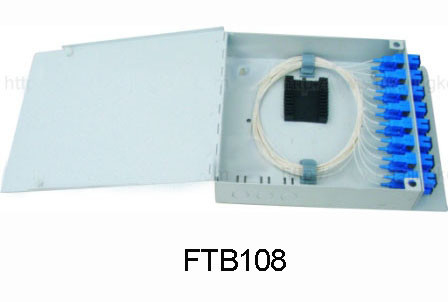

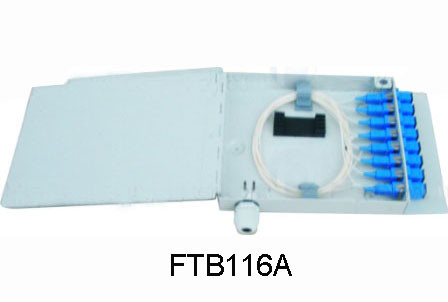

| Type | FTB104 | FTB108 | FTB116 |
| Size(mm)(H*W*D) | 140*105*28mm | 200*148*30mm | 245*200*48mm |
| Cbale port | 4 ports | 8 ports | 16 ports |
| Weight | 0.4kg | 0.7 kg | 1.3 kg |
| Package dimension | 730*315*275mm | 750*450*300 mm | 480*470*520 mm |
| Carton weight | 23kg / carton | 32kg / carton | 29kg / carton |
| Qty in carton | 50pcs | 40pcs | 20pcs |
Remark:
1. Please contact us if you want to buy sample first.
2. The sample fee will be returned when you place the bulk order next time.
