제품 상세 정보:
결제 및 배송 조건:
|
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Outer jacket: | PVC/LSZH/OFNP |
|---|---|---|---|
| Fiber quality: | 24 / 36 / 48 / 72 / 96 / 144 | Color: | Yelllow/Orange/Aqua/Customized |

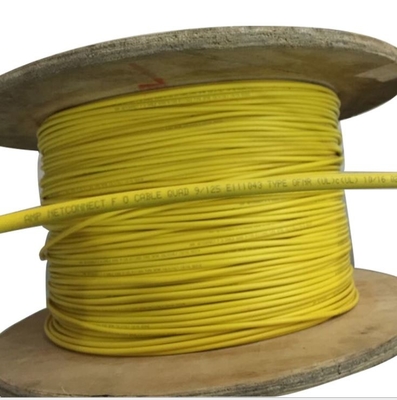

| Cable diameter: | 26.5±0.5 mm | Package: | Wooden reel ,1km/roll |
| Application: | FTTH / Indoor / Breakout patch cord | 인증: | ISO9001/CE/ROHS |
| 강조하다: | OS1 OS2 Optical Cable Wire,OM3 Single Mode optical cable,OM4 Single Mode optical cable |
||

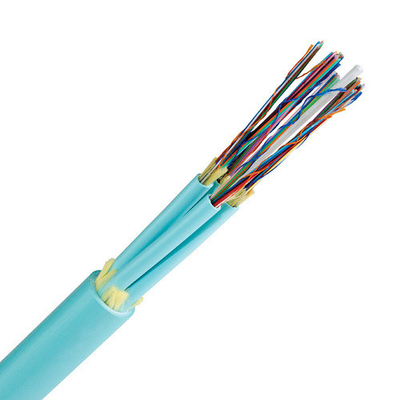

Singlemode 144 Core OM3 OM4 OS1 OS2 Optical Cable Wire
GJPFJY Singlemode Multimode 144core breakout tight buffer Optical Fiber Cable LSZH Jacket
Discription:

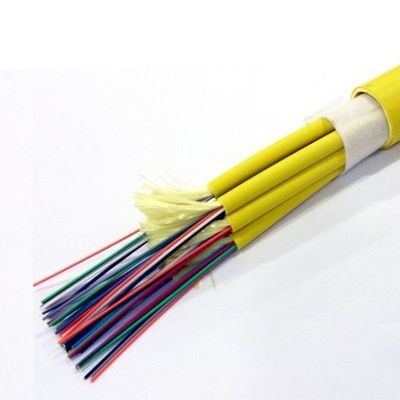

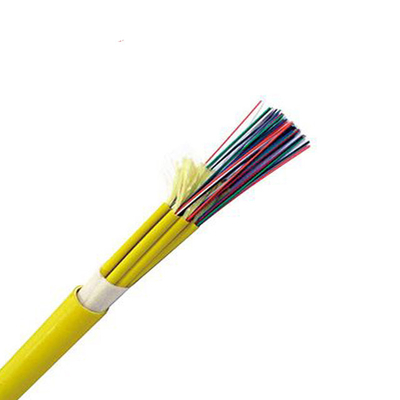

Breakout Cable has individual subcables within a primary outer cable sheath, and each fiber has its own aramid strength member for connector tie-off. It's the easiest fiber cable to install where direct termination of connectors to sub-units and direct run to panels and equipment is desired.
Features:
Good waterproof preformance.
Low smoke, zero halogen and flame retardant sheath.
Smaller diameter, simple structure, light weight, and high practicability.
Special low-bend-sensitivity fiber provides high bandwidth data transmission.
Novel flute design, easily strip and splice, simplify installation and maintenance.
Application:
Widely used in FTTH access network
Telecommunication Network
CATV Networks
Data communications Networks
Local area network
Transmission equipment,Voice data
Interconnection between apparatuses
Fiber Optical Patch cord and connectors
Connection for Passive and Active Optical Component
Various indoor cabling solutions. Especially used in good laying conditions.
Datasheet:
| Cable Type | Fiber Core | Sub units | Cable Diameter(MM) | Tensile Strength(N) | Crush Resistance(N) | Minimum Bend Radius(MM) | |||||
| Fiber counts | Unit Counts | Diameter(MM) | Short term | Long term | Short term | Long term | Dynamic | Static | |||
| GJPFJV | 24 | 6 | 4 | 4.5 | 13.8 | 1200 | 600 | 1200 | 600 | 20D | 10D |
| GJPFJV | 36 | 6 | 6 | 4.5 | 16.8 | 1600 | 800 | 1200 | 600 | 20D | 10D |
| GJPFJV | 48 | 12 | 4 | 5.5 | 16.8 | 1600 | 800 | 1200 | 600 | 20D | 10D |
| GJPFJV | 72 | 12 | 6 | 5.5 | 19.9 | 2000 | 1000 | 1200 | 600 | 20D | 10D |
| GJPFJV | 96 | 12 | 8 | 5.5 | 23.2 | 3500 | 1700 | 1200 | 600 | 20D | 10D |
| GJPFJV | 144 | 12 | 12 | 5.5 | 26.5 | 4000 | 2000 | 1200 | 600 | 20D | 10D |
Characteristic:
High fiber density, large capacity and compact structure
All-media structure, free from electromagnetic interference
Scientific and reasonable design, strict processing technology and good product performance
The outer sheath material has the advantage of corrosion resistance, waterproof, flame retardant and environmental protection.
| Items | Unite | Specifications |
| Tension (Long term) | N | 500 |
| Tension (Short term) | N | 1300 |
| Crush (Long term) | N/10cm | 300 |
| Crush (Short term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Operating Temperature | ℃ | -20~+60 |

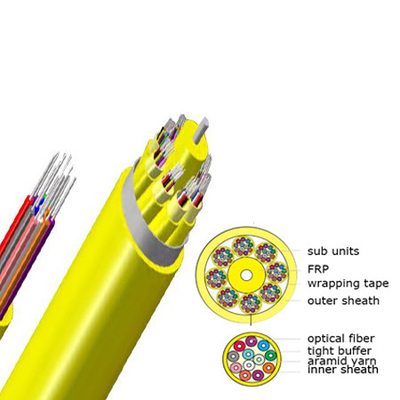

The multi-core branch cable I takes several simplex cables (900 µm tight buffered fibre with aramid yarn strength member) as the subunits which are stranded around the central strength member to form the cable core, then extruded with a PVC sheath. Other sheath materials,like LSZH, are available on request.
Detail:
