제품 상세 정보:
결제 및 배송 조건:
|
| Model No.: | Optical FWDM Splitter | Input/Output connector: | FC, SC, LC optional |
|---|---|---|---|
| Channel Wavelength: | 1310nm/1490nm/1550 nm | Coupling ratio(%): | 1-99 |
| Storage Temperature: | -40℃~+85℃ | Use: | FTTX |
| 강조하다: | 1310nm WDM CWDM DWDM,plc splitter Filter WDM,Optic Fiber CWDM DWDM |
||

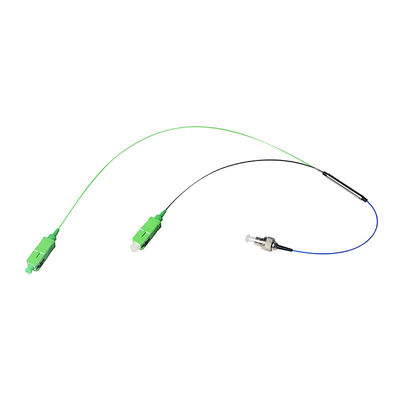

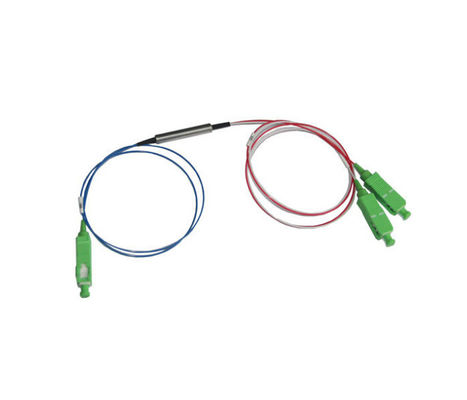

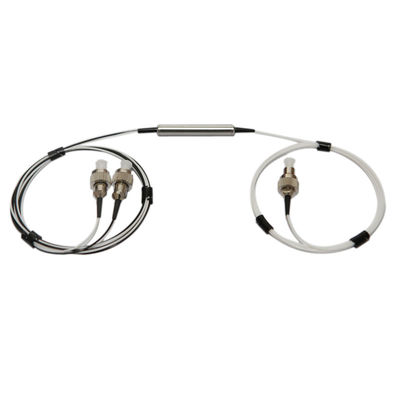

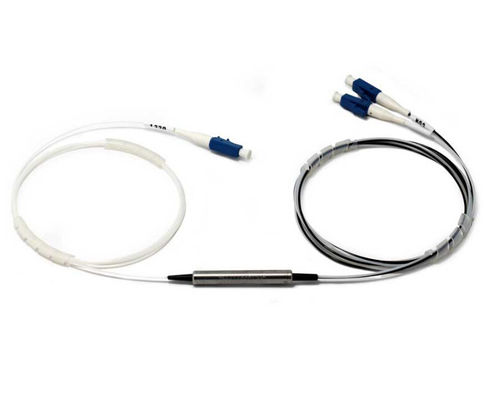

Optic Fiber Plc Splitter Filter 1310nm WDM CWDM DWDM
Mini FWDM 1 in 2 out optic fiber plc splitter Filter WDM for 1310 1490 1550 nm
Applications
System Monitoring
Transmitters and Fiber
Fiber optical amplifier
CATV System
FTTH System
Features&Advantage:
Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability
Specification
|
Parameters
|
Unit
|
Specifications
|
||||
|
1
|
Operating Wavelength Range
|
nm
|
1260 ~ 1620
|
1520 ~ 1570
|
||
|
2
|
Channel Spacing
|
---
|
20nm
|
100GHz
|
||
|
3
|
Channel Passband (@-0.5dB bandwidth)
|
nm
|
IUT ± 6.5
|
UT ± 0.125
|
||
|
4
|
Channel Quantity
|
---
|
C4CH
|
C8CH
|
C4CH
|
C8CH
|
|
5
|
Max. Pass Band Ripple
|
dB
|
<0.35
|
<0.4
|
||
|
6
|
Max. Channel Insertion Loss
|
dB
|
≤1.8
|
≤3.0
|
≤2.0
|
≤3.2
|
|
7
|
Min. Adjacent Channel Isolation
|
dB
|
>30
|
>25
|
||
|
8
|
Min. Non-Adjacent Channel Isolation
|
dB
|
>45
|
>35
|
||
|
9
|
Min. Express Channel Isolation
|
|
>13
|
>12
|
||
|
10
|
Min. Return Loss
|
dB
|
≥45
|
|||
|
11
|
Max. PDL
|
dB
|
<0.1
|
<0.1
|
<0.20
|
<0.30
|
|
12
|
Insertion Loss Temperature Sensitivity
|
dB/℃
|
<0.005
|
|||
|
13
|
Wavelength Temperature Shifting
|
nm/℃
|
<0.002
|
|||
|
14
|
Max. Power Handling
|
mW
|
300
|
|||
|
15
|
Directivity
|
dB
|
≥50
|
|||
|
16
|
Operation Temperature Range
|
℃
|
-40 to +80
|
|||
|
17
|
Storage Temperature Range
|
℃
|
-40 to +85
|
|||
|
18
|
Fiber Jacket & Fiber Length
|
cm
|
Customize
|
|||
|
19
|
Package Dimensions – 1
|
mm
|
100 * 80 * 10 or Customize
|
|||
|
20
|
Package Dimensions – 2
|
mm
|
LGX Compatible
|
|||
|
21
|
Package Dimensions – 3
|
mm
|
19” 1U Rack Mounted
|
|||
|
22
|
Connector Type
|
--
|
SC/LC/FC or Customize
|
|||
|
23
|
Fiber Type and Jacket Color
|
|
G.652D / G.657 A1 (or Customize)
|
|||
